Butterfly valves

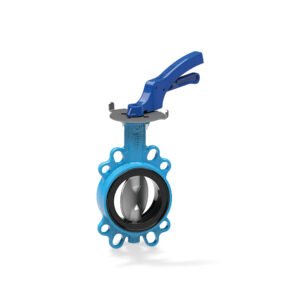

BOAX-B butterfly valve
- Pressure
- PN 6, PN 10, PN 16
- Size
- DN 1000
- Max. temp.
- 110 °C
Catalogue
Butterfly valves
Butterfly valves for water, HVAC and industrial systems.
7 products
Butterfly valves

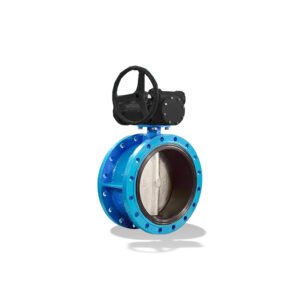

BOAX-CBV13 butterfly valve
- Pressure
- PN 10, PN 16
- Size
- DN 1200
- Max. temp.
- 70 °C
Butterfly valves

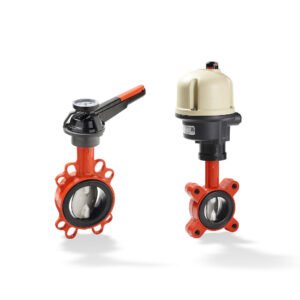

BOAX-S/SF butterfly valve
- Pressure
- PN 6, PN 10, PN 16
- Size
- DN 600
- Max. temp.
- 130 °C
Butterfly valves

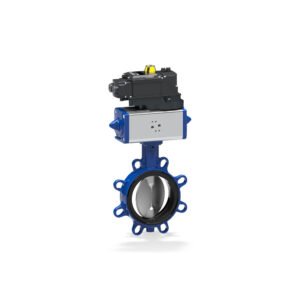

ISORIA 10/16 butterfly valve
- Pressure
- PN 6, PN 16
- Size
- DN 1000
- Max. temp.
- 200 °C
Butterfly valves

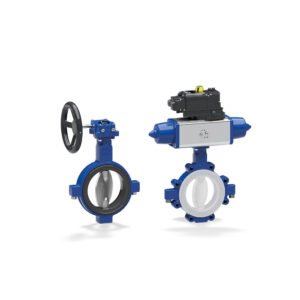

KE Elastomer & KE Plastomer process butterfly valve
- Pressure
- PN 6, PN 10
- Size
- DN 600
- Max. temp.
- 200 °C
Butterfly valves

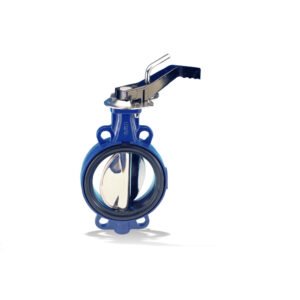

ISORIA 20/25 butterfly valve
- Pressure
- PN 20, PN 25
- Size
- DN 1000
- Max. temp.
- 200 °C
Butterfly valves

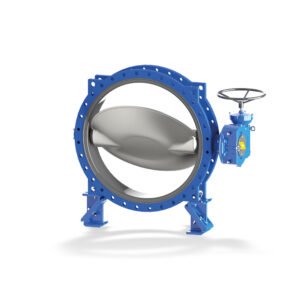

MAMMOUTH butterfly valve
- Pressure
- PN 6, PN 10, PN 16, PN 20, PN 25
- Size
- DN 4000
- Max. temp.
- 80 °C
Technical guide
Butterfly valves: series and key data
Butterfly valves: 7 KSB series in the Techworks catalogue (MAMMOUTH, KE Elastomer & KE Plastomer, ISORIA 20/25, ISORIA 10/16, BOAX-S/SF, BOAX-CBV13 and others). Operating temperatures up to 200 °C. For a quote we need the DN, PN, fluid, temperature and type of actuation.
| Series | Product | DN | PN / pressure | T max | Datasheet |
|---|---|---|---|---|---|
| MAMMOUTH | MAMMOUTH butterfly valve | DN 4000 | PN 6, PN 10, PN 16, PN 20, PN 25 | 80 °C | |
| KE Elastomer & KE Plastomer | KE Elastomer & KE Plastomer process butterfly valve | DN 600 | PN 6, PN 10 | 200 °C | |
| ISORIA 20/25 | ISORIA 20/25 butterfly valve | DN 1000 | PN 20, PN 25 | 200 °C | |
| ISORIA 10/16 | ISORIA 10/16 butterfly valve | DN 1000 | PN 6, PN 16 | 200 °C | |
| BOAX-S/SF | BOAX-S/SF butterfly valve | DN 600 | PN 6, PN 10, PN 16 | 130 °C | |
| BOAX-CBV13 | BOAX-CBV13 butterfly valve | DN 1200 | PN 10, PN 16 | 70 °C | |
| BOAX-B | BOAX-B butterfly valve | DN 1000 | PN 6, PN 10, PN 16 | 110 °C |
Maximum values for each series, from KSB datasheets.
