Triple offset butterfly valves
TRIODIS 150 triple offset butterfly valve
- Pressure
- CL 150, PN 10, PN 25
- Size
- DN 1400
- Max. temp.
- 260 °C
Catalogue
Triple offset butterfly valves
Triple offset butterfly valves with metal seats, for high pressures and temperatures.
3 products
Triple offset butterfly valves
TRIODIS 300 triple offset butterfly valve
- Pressure
- CL 300, PN 40
- Size
- DN 1200
- Max. temp.
- 260 °C
Triple offset butterfly valves

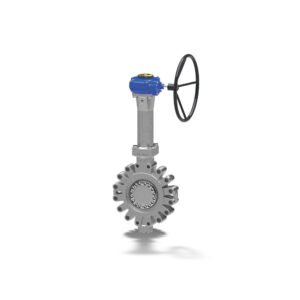

TRIODIS 600 triple offset butterfly valve
- Pressure
- CL 600, PN 63
- Size
- DN 1000
- Max. temp.
- 200 °C
Technical guide
Triple offset butterfly valves: series and key data
Triple offset butterfly valves: 3 KSB series in the Techworks catalogue (TRIODIS 600, TRIODIS 300, TRIODIS 150). Operating temperatures up to 260 °C. For a quote we need the DN, PN, fluid, temperature and type of actuation.
| Series | Product | DN | PN / pressure | T max | Datasheet |
|---|---|---|---|---|---|
| TRIODIS 600 | TRIODIS 600 triple offset butterfly valve | DN 1000 | CL 600, PN 63 | 200 °C | |
| TRIODIS 300 | TRIODIS 300 triple offset butterfly valve | DN 1200 | CL 300, PN 40 | 260 °C | |
| TRIODIS 150 | TRIODIS 150 triple offset butterfly valve | DN 1400 | CL 150, PN 10, PN 25 | 260 °C |
Maximum values for each series, from KSB datasheets.
