Diaphragm valves
SISTO-20NA diaphragm valve for nuclear applications
- Pressure
- PN 20
- Size
- DN 150
- Max. temp.
- 100 °C
Catalogue
Diaphragm valves
SISTO diaphragm valves for aggressive or abrasive fluids and hygienic applications.
9 products
Diaphragm valves

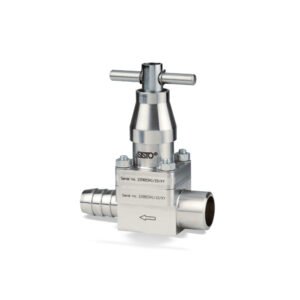

SISTO-DrainNA diaphragm valve for nuclear applications
- Pressure
- PN 16
- Size
- DN 25
- Max. temp.
- 100 °C
Technical guide
Diaphragm valves: series and key data
Diaphragm valves: 9 KSB series in the Techworks catalogue (SISTO-KB, SISTO-DrainNA, SISTO-C, SISTO-20NA, SISTO-20, SISTO-16TWA and others). Operating temperatures up to 160 °C. For a quote we need the DN, PN, fluid, temperature and type of actuation.
| Series | Product | DN | PN / pressure | T max | Datasheet |
|---|---|---|---|---|---|

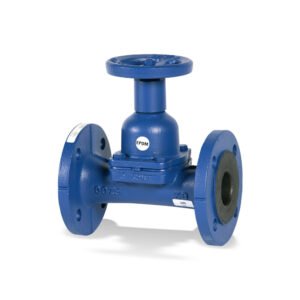

| SISTO-KB | SISTO-KB diaphragm valve | DN 200 | PN 10 | 140 °C | |
| SISTO-DrainNA | SISTO-DrainNA diaphragm valve for nuclear applications | DN 25 | PN 16 | 100 °C | |

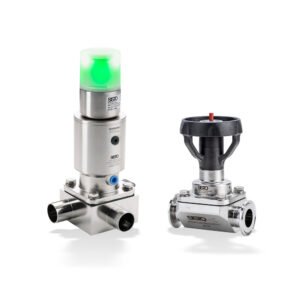

| SISTO-C | SISTO-C diaphragm valve | DN 100 | PN 16 | 160 °C | |
| SISTO-20NA | SISTO-20NA diaphragm valve for nuclear applications | DN 150 | PN 20 | 100 °C | |

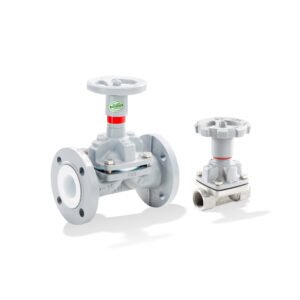

| SISTO-20 | SISTO-20 diaphragm valve | DN 200 | PN 16 | 160 °C | |

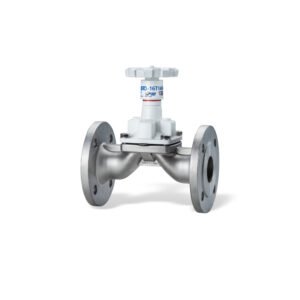

| SISTO-16TWA | SISTO-16TWA diaphragm valve | DN 200 | PN 16 | 90 °C | |

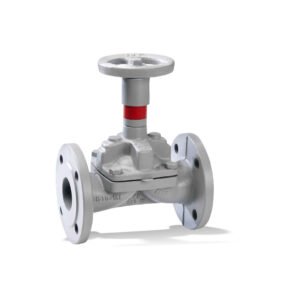

| SISTO-16S | SISTO-16S diaphragm valves | DN 200 | PN 16 | 160 °C | |

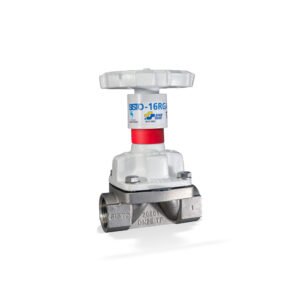

| SISTO-16RGAMaXX | SISTO-16RGAMaXX diaphragm valve | DN 80 | PN 16 | 90 °C | |

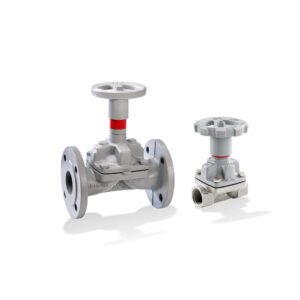

| SISTO-16 | SISTO-16 diaphragm valve | DN 200 | PN 16 | 160 °C |
Maximum values for each series, from KSB datasheets.
