Boiler feed pumps
HGM/HGM-S multistage centrifugal pump
- Max. flow rate
- 390 m³/h
- Max. head
- 1400 m
- Pressure
- 140 bar
Catalogue
Energy
KSB pumps for thermal power plants, cogeneration and district heating: boiler feed pumps, condensate pumps and vertical centrifugal pumps for high pressures and temperatures.
8 products
Boiler feed pumps

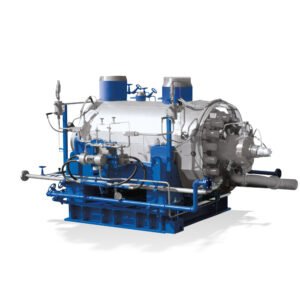

CHTD boiler feed pump
- Max. flow rate
- 5700 m³/h
- Max. head
- 5400 m
- Pressure
- 560 bar
Condensate pumps
WKTR barrel casing condensate pump
- Max. flow rate
- 350 m³/h
- Max. head
- 500 m
- Pressure
- 51 bar
Boiler feed pumps
CHTC multistage boiler feed pump
- Max. flow rate
- 1278 m³/h
- Max. head
- 4000 m
- Pressure
- 400 bar
Vertical centrifugal pumps
PHZ vertical axial pump with adjustable impeller blades
- Max. flow rate
- 65000 m³/h
- Max. head
- 25 m
- Pressure
- 10 bar
Vertical centrifugal pumps
PNZ vertical axial pump
- Max. flow rate
- 65000 m³/h
- Max. head
- 15 m
- Pressure
- 10 bar
Vertical centrifugal pumps
SEZ vertical immersed axial pump
- Max. flow rate
- 65000 m³/h
- Max. head
- 33 m
- Pressure
- 10 bar
Vertical centrifugal pumps
SNW vertical immersed pump
- Max. flow rate
- 6500 m³/h
- Max. head
- 60 m
- Pressure
- 10 bar
Technical guide
Energy: series and key data
Energy: 8 KSB series in the Techworks catalogue (HGM/HGM-S, SEZ, SNW, PHZ, PNZ, WKTR and others). The range covers flow rates up to 65,000 m³/h (SEZ), heads up to 5,400 m (CHTD) and fluids up to 270 °C. We select the exact size, impeller, materials and motor based on the duty point of your application.
| Series | Product | Q max | H max | T max | Datasheet |
|---|---|---|---|---|---|
| HGM/HGM-S | HGM/HGM-S multistage centrifugal pump | 390 m³/h | 1400 m | 160 °C | |
| SEZ | SEZ vertical immersed axial pump | 65000 m³/h | 33 m | 40 °C | |
| SNW | SNW vertical immersed pump | 6500 m³/h | 60 m | 60 °C | |
| PHZ | PHZ vertical axial pump with adjustable impeller blades | 65000 m³/h | 25 m | 40 °C | |
| PNZ | PNZ vertical axial pump | 65000 m³/h | 15 m | 80 °C | |
| WKTR | WKTR barrel casing condensate pump | 350 m³/h | 500 m | 250 °C | |
| CHTC | CHTC multistage boiler feed pump | 1278 m³/h | 4000 m | 200 °C | |
| CHTD | CHTD boiler feed pump | 5700 m³/h | 5400 m | 270 °C |
Maximum values for each series, from KSB datasheets.
