Well pumps

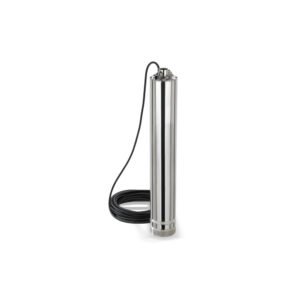

Ixo N multistage submersible borehole water pump
- Max. flow rate
- 8 m³/h
- Max. head
- 65 m
- Pressure
- 6 bar
Catalogue
Well pumps
Well and borehole pumps for building water supply.
3 products
Submersible water pumps

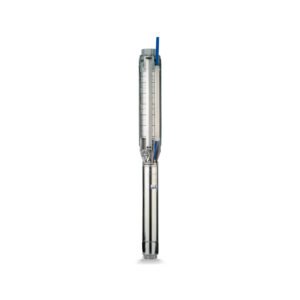

UPA C 150 borehole submersible pump
- Max. flow rate
- 80 m³/h
- Max. head
- 420 m
- Pressure
- 60 bar
Submersible water pumps

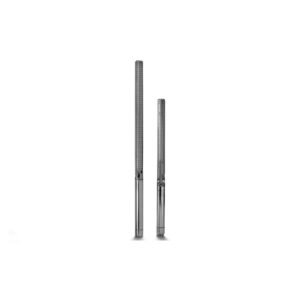

UPA C 100 submersible pump for clean water
- Max. flow rate
- 24 m³/h
- Max. head
- 600 m
- Pressure
- 60 bar
Technical guide
Well pumps: series and key data
Well pumps: 3 KSB series in the Techworks catalogue (Ixo N, UPA C 150, UPA C 100). The range covers flow rates up to 80 m³/h (UPA C 150), heads up to 600 m (UPA C 100) and fluids up to 50 °C. We select the exact size, impeller, materials and motor based on the duty point of your application.
| Series | Product | Q max | H max | T max | Datasheet |
|---|---|---|---|---|---|
| Ixo N | Ixo N multistage submersible borehole water pump | 8 m³/h | 65 m | 35 °C | |
| UPA C 150 | UPA C 150 borehole submersible pump | 80 m³/h | 420 m | 50 °C | |
| UPA C 100 | UPA C 100 submersible pump for clean water | 24 m³/h | 600 m | 40 °C |
Maximum values for each series, from KSB datasheets.
