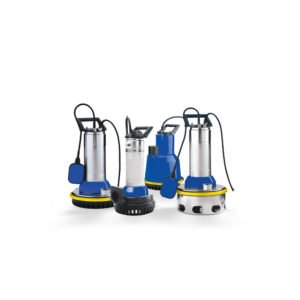

AmaDrainer 4 / 5 & AmaDrainer 80 / 100 drainage pump
- Max. flow rate
- 130 m³/h
- Max. head
- 26 m
- Max. temp.
- 40 °C
KSB · Drainage pumps
AmaDrainer 3 drainage pump
Vertical single-stage, fully floodable, close-coupled submersible pump with integrated level switch for automatic operation or, optionally, control via an external switching device, maximum immersion depth 2 m.
| Max. flow rate | 12.2 m³/h |
|---|---|
| Max. head | 11.3 m |
| Pressure | 10 bar |
| Max. temp. | 70 °C |
Maximum values for the series. The exact selection is made on the duty point.
Price and lead time on request
We quote the configuration that fits your application: size, impeller, materials, motor.
Technical questions? Call an engineer: 0770 579 904- Original KSB equipment with manufacturer's warranty
- Free hydraulic selection before the quote
- Delivery throughout Romania and original spare parts
AmaDrainer 3 is part of the KSB range of drainage pumps. Drainage pumps for basements, garages and collection pits.
Key data of the AmaDrainer 3 series
- Maximum series flow rate: 12.2 m³/h
- Maximum head: 11.3 m
- Pressure: 10 bar
- Maximum fluid temperature: 70 °C
These are maximum values for the series. The exact size, materials and motor are chosen on the duty point of your application.
Fluids and applications
- Removing water from flooded basements and enclosures
- Rainwater
Quote and sizing
For a quote on AmaDrainer 3 we need the flow rate, head, fluid and temperature. If you are replacing an existing pump, a photo of its nameplate is enough: we find the right variant and check the connections. The datasheet is in the Documentation tab.
| Maximum overall flow rate of the type series | 12.2 m³/h |
|---|---|
| Maximum pump head in the type series | 11.3 m |
| Maximum permissible pressure for the pump in the type series | 10 bar |
| Maximum fluid temperature | 70 °C |
- AmaDrainer 3 50 HzPDF · 2.6 MB Download
- AmaDrainer 3 60 HzPDF · 2.3 MB Download
- AmaDrainer 3 Great BritainPDF · 1.7 MB Download
- LevelControl Basic 2PDF · 7.1 MB Download
KSB documentation. For performance curves and dimensional drawings for the exact variant, request a quote.
Spare parts for AmaDrainer 3
We supply original KSB spare parts for AmaDrainer 3 (impellers, mechanical seals, bearings, wear rings, repair kits), including for equipment bought from other suppliers. To identify the parts we only need the series and type from the equipment nameplate.
