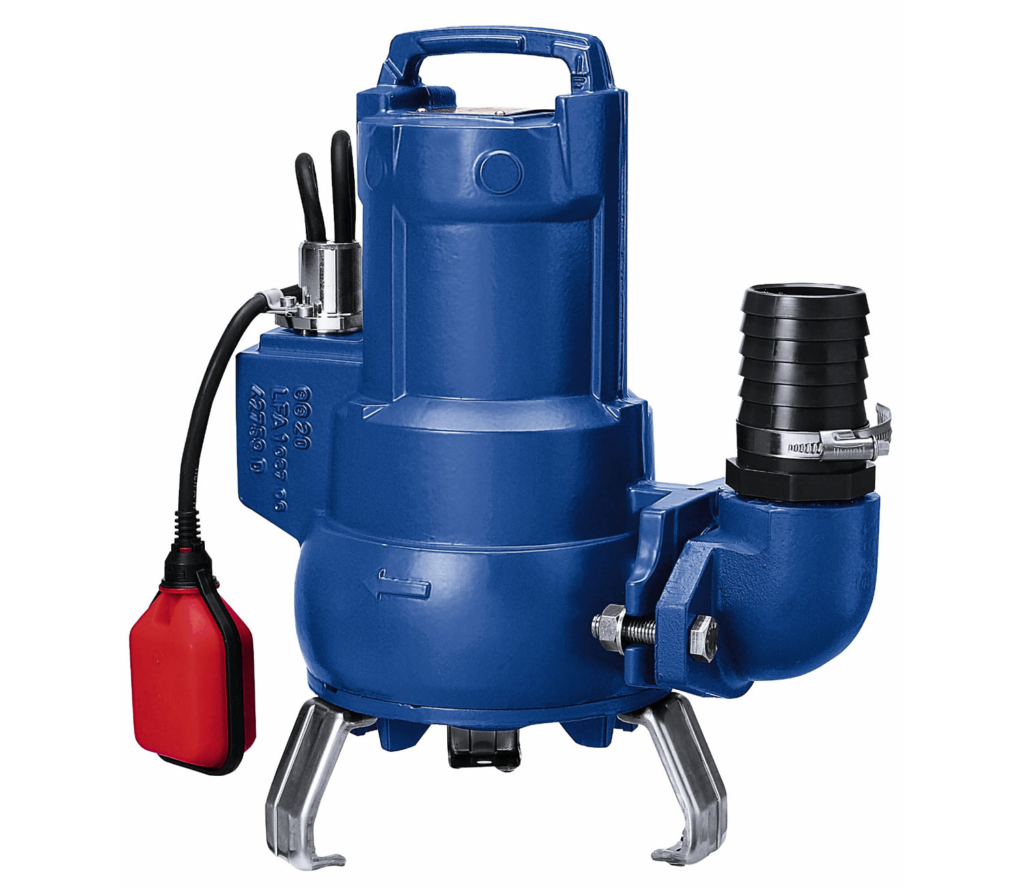

Ama Porter portable submersible wastewater pump
Benefits: Robust pump Quick and easy installation High reliability Long service life Open vortex impeller with free passage for solids up to 60 mm Tight and secure power cable connection
Price and lead time on request
We quote the configuration that fits your application: size, impeller, materials, motor.
Technical questions? Call an engineer: 0770 579 904- Original KSB equipment with manufacturer's warranty
- Free hydraulic selection before the quote
- Delivery throughout Romania and original spare parts
Ama Porter is part of the KSB domestic range. KSB pumps for household use: submersible well pumps, drainage pumps and portable wastewater pumps.
Fluids and applications
- Domestic wastewater
Quote and sizing
For an Ama Porter quote we need the flow rate, head, fluid and temperature. If you are replacing an existing pump, a photo of its nameplate is enough: we find the right version and check the connections. The datasheet is in the Documentation tab.
| Type | Ama Porter 500 SE, 230V, Ama Porter 501 SE, 230V, Ama Porter 502 SE, 230V, Ama Porter 503 SE, 230V, Ama Porter 601 SE, 230V, Ama Porter 602 SE, 230V, Ama Porter 603 SE, 230V |
|---|
KSB documentation. For performance curves and dimensional drawings for the exact variant, request a quote.
Operating range:
- Q min = 0, H max = 12.5m
- Q = 5m³/h, H = 11.8m
- Q = 10m³/h, H = 10.7m
- Q = 15m³/h, H = 9.3m
- Q= 25m³/h, H = 6.2m
- Q max = 39m³/h, H min = 2.4m
Technical specifications:
- Manufacturer: KSB Germany
- Product code: 39017108
- Pump type: Portable
- Discharge diameter: DN65
- Impeller type: Vortex
- Impeller free passage: 60mm
- Supply voltage: 230V
- Mains frequency: 50Hz
- Rated motor power: 1.1kW
- Motor protection rating: IP68
- Rated current: 8.2A
- Starting current: 30.3A
- Power cable length: 10m
- Power cable: 3 x 1 mm²
- Level float switch: included
- Pump weight: 26kg
Operating range:
- Q min = 0, H max = 10.3m
- Q = 5m³/h, H = 9.7m
- Q = 10m³/h, H = 8.5m
- Q = 15m³/h, H = 6.9m
- Q = 25m³/h, H = 3.9m
- Q max = 35m³/h, H min = 1.7m
Technical specifications:
- Manufacturer: KSB Germany
- Product code: 39017107
- Pump type: Portable
- Discharge diameter: DN65
- Impeller type: Vortex
- Impeller free passage: 60mm
- Supply voltage: 230V
- Mains frequency: 50Hz
- Rated motor power: 1.1kW
- Motor protection rating: IP68
- Rated current: 8.2A
- Starting current: 30.3A
- Power cable length: 10m
- Power cable: 3 x 1 mm²
- Level float switch: included
- Pump weight: 26kg
Operating range:
- Q min = 0, H max = 8.2m
- Q = 5m³/h, H = 7.5m
- Q = 10m³/h, H = 6.3m
- Q = 15m³/h, H = 4.8m
- Q = 20m³/h, H = 3.3m
- Q max = 29m³/h, H min = 1.2m
Technical specifications:
- Manufacturer: KSB Germany
- Product code: 39017106
- Pump type: Portable
- Discharge diameter: DN65
- Impeller type: Vortex
- Impeller free passage: 60mm
- Supply voltage: 230V
- Mains frequency: 50Hz
- Rated motor power: 0.75kW
- Motor protection rating: IP68
- Rated current: 6A
- Starting current: 22A
- Power cable length: 10m
- Power cable: 3 x 1 mm²
- Level float switch: included
- Pump weight: 26kg
Operating range:
- Q min = 0, H max = 16m
- Q = 5m³/h, H = 14.5m
- Q = 10 m³/h, H = 13m
- Q = 15 m³/h, H = 11m
- Q = 20 m³/h, H = 9m
- Q max = 28 m³/h, H min = 4.5m
Technical specifications:
- Manufacturer: KSB Germany
- Product code: 39017102
- Pump type: Portable
- Discharge diameter: DN50
- Impeller type: Vortex
- Impeller free passage: 45mm
- Supply voltage: 230V
- Mains frequency: 50Hz
- Rated motor power: 1.1kW
- Motor protection rating: IP68
- Rated current: 8.2A
- Starting current: 30.3A
- Power cable length: 10m
- Power cable: 3 x 1 mm²
- Level float switch: included
- Pump weight: 23kg
Operating range:
- Q min = 0, H max = 13.8m
- Q = 5m³/h, H = 12.3m
- Q = 10m³/h, H = 10.8m
- Q = 15m³/h, H = 8.8m
- Q = 20m³/h, H = 6.6m
- Q max = 25m³/h, H min = 3.5m
Technical specifications:
- Manufacturer: KSB Germany
- Product code: 39017101
- Pump type: Portable
- Discharge diameter: DN50
- Impeller type: Vortex
- Impeller free passage: 45mm
- Supply voltage: 230V
- Mains frequency: 50Hz
- Rated motor power: 1.1kW
- Motor protection rating: IP68
- Rated current: 8.2A
- Starting current: 30.3A
- Power cable length: 10m
- Power cable: 3 x 1 mm²
- Level float switch: included
- Pump weight: 23kg
Operating range:
- Q min = 0, H max = 11.9m
- Q = 5m³/h, H = 10.5m
- Q = 10m³/h, H = 8.7m
- Q = 15m³/h, H = 6.7m
- Q max = 22m³/h, H min = 3.2m
Technical specifications:
- Manufacturer: KSB Germany
- Product code: 39017100
- Pump type: Portable
- Discharge diameter: DN50
- Impeller type: Vortex
- Impeller free passage: 45mm
- Supply voltage: 230V
- Mains frequency: 50Hz
- Rated motor power: 0.75kW
- Motor protection rating: IP68
- Rated current: 6A
- Starting current: 22A
- Power cable length: 10m
- Power cable: 3 x 1 mm²
- Level float switch: included
- Pump weight: 23kg
Operating range:
Q min = 0, H max = 9.5m
Q = 5m³/h, H = 8.5m
Q = 10m³/h, H = 7m
Q = 15m³/h, H = 4.5m
Q max = 20m³/h, H min = 2.2m
Technical specifications:
- Manufacturer: KSB Germany
- Product code: 39017187
- Pump type: Portable
- Discharge diameter: DN50
- Impeller type: Vortex
- Impeller free passage: 45mm
- Supply voltage: 230V
- Mains frequency: 50Hz
- Rated motor power: 0.55kW
- Motor protection rating: IP68
- Rated current: 5A
- Starting current: 18.2A
- Power cable length: 10m
- Power cable: 3 x 1 mm²
- Level float switch: included
- Pump weight: 23kg
Spare parts for Ama Porter
We supply original KSB spare parts for Ama Porter (impellers, mechanical seals, bearings, wear rings, repair kits), including for equipment bought from other suppliers. To identify the parts we only need the series and type from the equipment nameplate.
